1. GENERAL SPECIFICATIONS

• Package dimension: 79cm W x 49cm D x 88cm H

• Gross weight: 76.9kg

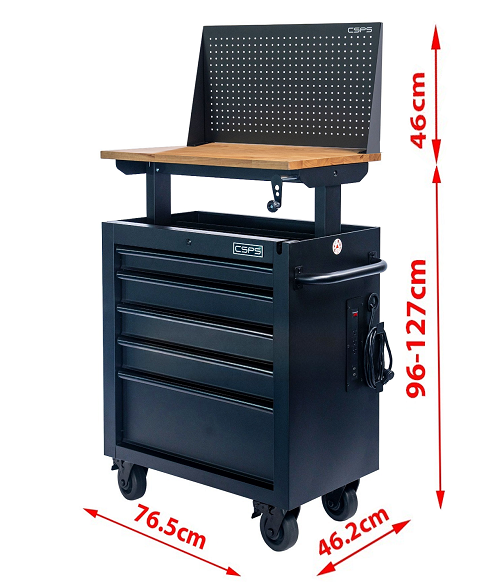

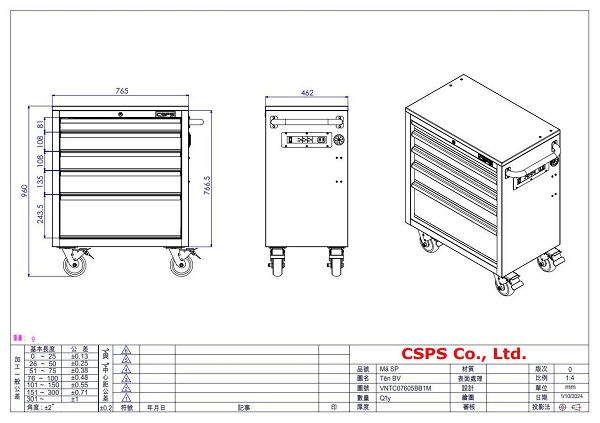

• Product dimension: 76.5cm W x 46.2cm D x 142cm - 173cm H (including caster & pegboard height)

• Net weight: 72.6kg

• Warranty: 2 years

2. CAPACITY

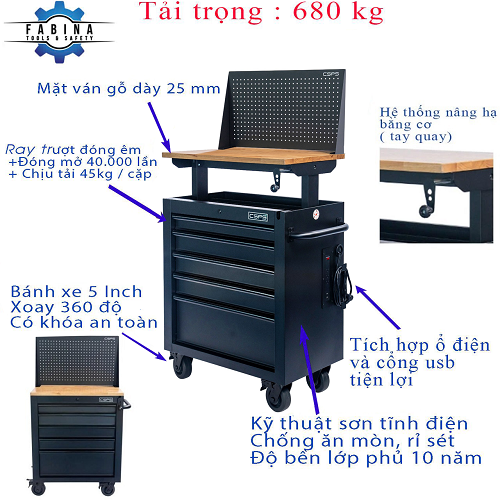

• Overall capacity: 680kg

• Drawers: Quantity: 05
  • Small drawers: 45kg per drawer, Quantity: 04
  • Big drawer: 90kg per drawer, Quantity: 01

• Drawer slides: Soft-Close Ball Bearing Drawer Slides

• Usage cycle: 40,000 times

3. OTHERS

• Top wood: Solid wood

• Thickness: 2.5cm

• Locks: Drawer lock: 01
  • Lock pull force: minimum 45kg

• Coating:
  • Color: Matt Blue
  • Powder coating technology
  • Coating durability: 10 years

4. STANDARDS:

• Appearance:
  • 16 CFR 1500.48/1500.49 (Scope widened): Sharp point test
  • 16 CFR 1303: Lead-containing paint test

• Coating:
  • ASTM B117 (mod.) & ASTM D610 (mod.): Corrosion test
  • ASTM D3363 (mod.): Hardness test
  • ASTM D2794: Impact test
  • ASTM D4752: Solvent resistance rub test
  • ASTM D3359: Cross-cut tape test

• Steel: ASTM A1008: Standard specification for steel

• Function: ANSI/BIFMA X 5.9: Storage unit test – Static load, dynamic load, durability testing

5. PARTITION MESH SPECIFICATIONS

• Package dimension: 78.5cm W x 48cm D x 6cm H

• Gross weight: 3.9kg

• Product dimension: 76cm W x 14cm D x 46cm H

• Net weight: 3.0kg

• Warranty: 2 years

• Overall capacity: 34kg

• Coating: Color: Matt Blue

• Powder coating technology

• Coating durability: 10 years

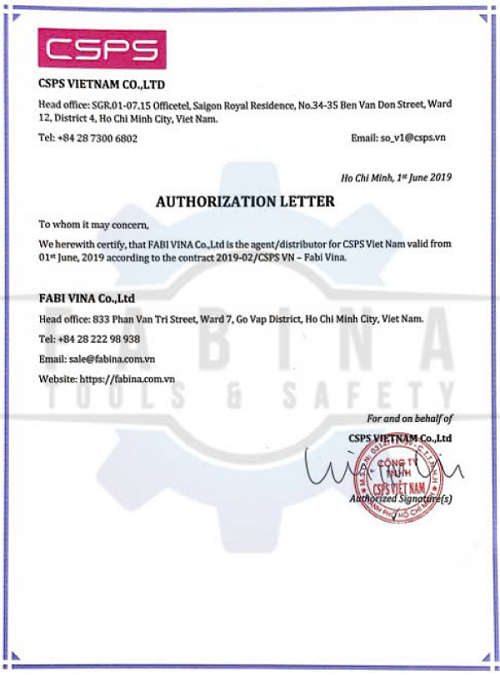

Authorized Distributor Certificate
