CSPS 183cm Red Tool Cabinet Set with Wooden Top and Pegboard – 09 Drawers

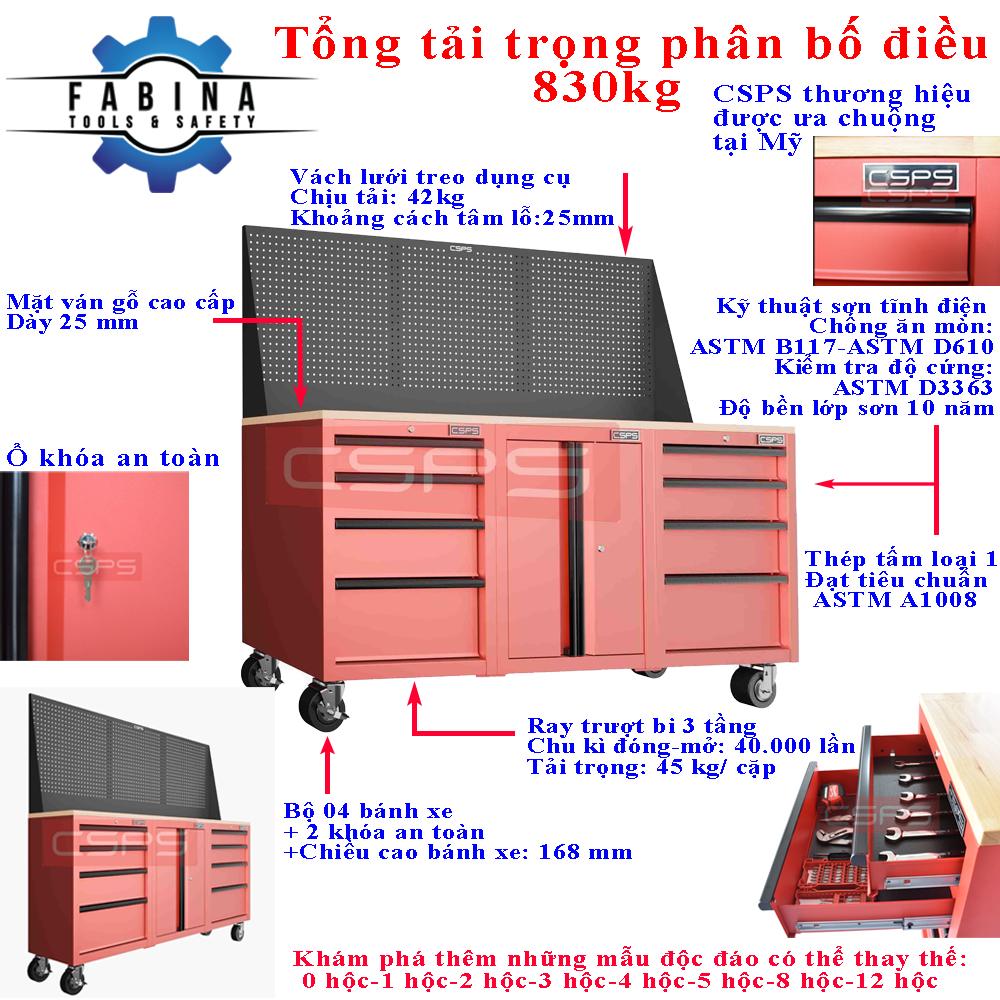

1. GENERAL SPECIFICATIONS

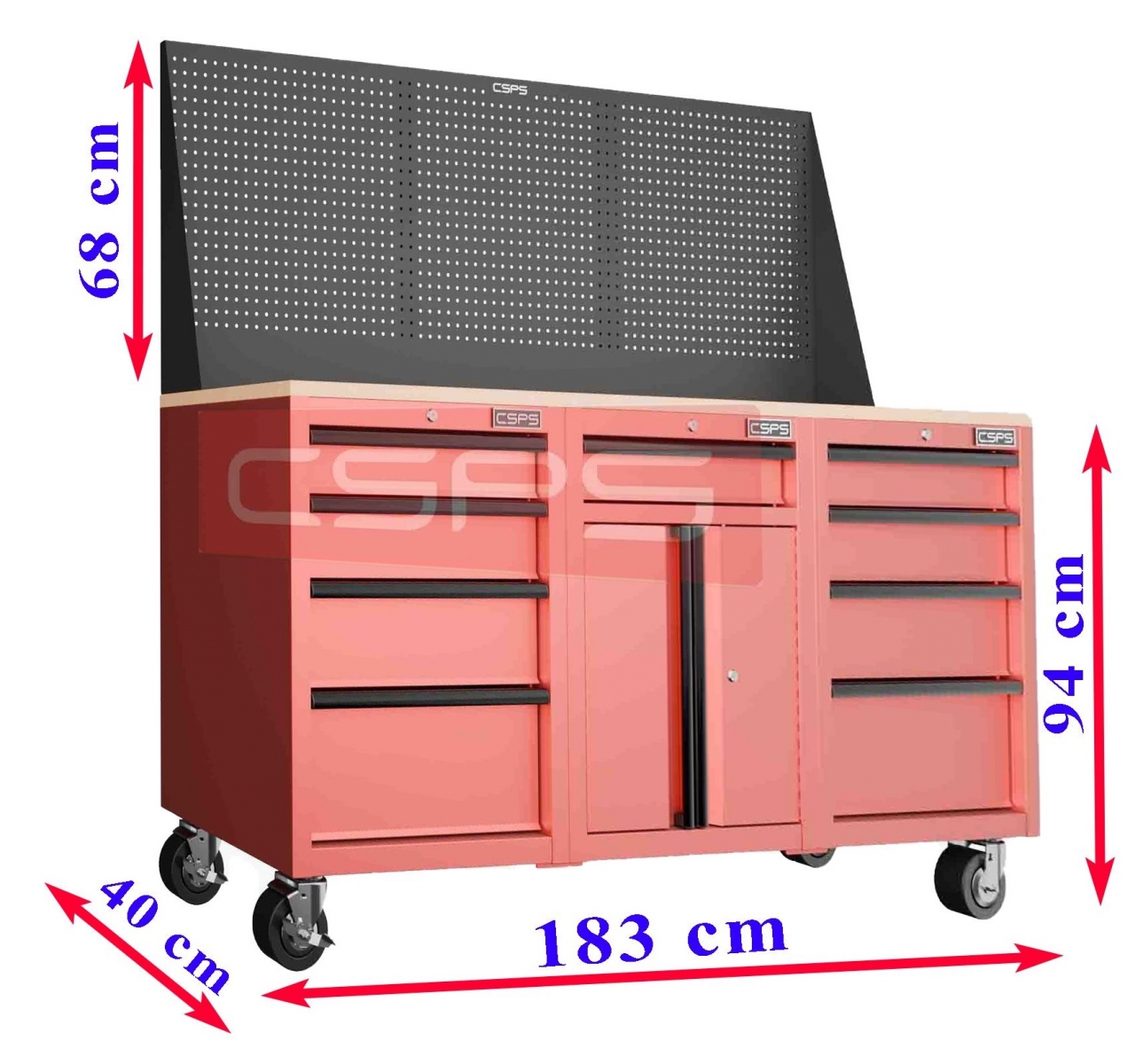

Product dimensions:

• Door base cabinet: 61cm W × 40cm D × 92cm H. Quantity: 02.

• Middle base cabinet: 61cm W × 40cm D × 92cm H. Quantity: 01.

• Wood top: 183cm W × 40cm D × 2.5cm H. Quantity: 01.

• Pegboard: 181cm W × 15cm D × 68cm H. Quantity: 01.

Product weight:

• Door base cabinet: 30 kg.

• Wood top: 13 kg.

• Pegboard: 9.2 kg.

2. CAPACITY

• Total load capacity:

  • Each two-door base cabinet: 450 kg/cabinet.

  • Wood top: 136 kg.

• Drawers:

  • Dimension: 61cm W × 40cm D × 76cm H. Quantity: 09.

  • Equipped with 3-section ball bearing slides.

  • Load capacity: 45 kg/drawer.

  • Usage cycle: 40,000 times.

• Cabinets:

  • Quantity: 02.

  • Load capacity: 45 kg/compartment.

3. OTHERS

• Locks:

  • Drawer locks: 03. Minimum pull-off force: 45 kgf.

  • Cabinet locks: 03.

• Coating:

  • Colour: Red.

  • Powder coating technology.

  • Coating durability: 10 years.

• Casters:

  • 02 swivel casters (non-locking) & 02 swivel casters (with locks).

  • Load capacity of casters: 1000 kg.

• Wood top:

  • Quantity: 01.

  • Dimension: 183cm W × 40cm D × 2.5cm H.

  • Weight: 13 kg.

4. STANDARDS

• Appearance:

  • 16 CFR 1500.48/1500.49 (Scope widened): sharp point test.

  • 16 CFR 1303: lead-containing paint test.

• Coating:

  • ASTM B117 (modified) & ASTM D610 (modified): corrosion test.

  • ASTM D3363 (modified): hardness test.

  • ASTM D2794: impact test.

  • ASTM D4752: solvent resistance rub test.

  • ASTM D3359: cross-cut tape test.

• Steel:

  • ASTM A1008: standard specification for steel.

• Functionality:

  • ANSI/BIFMA X 5.9: Storage unit test – static loading; dynamic loading; durability testing.

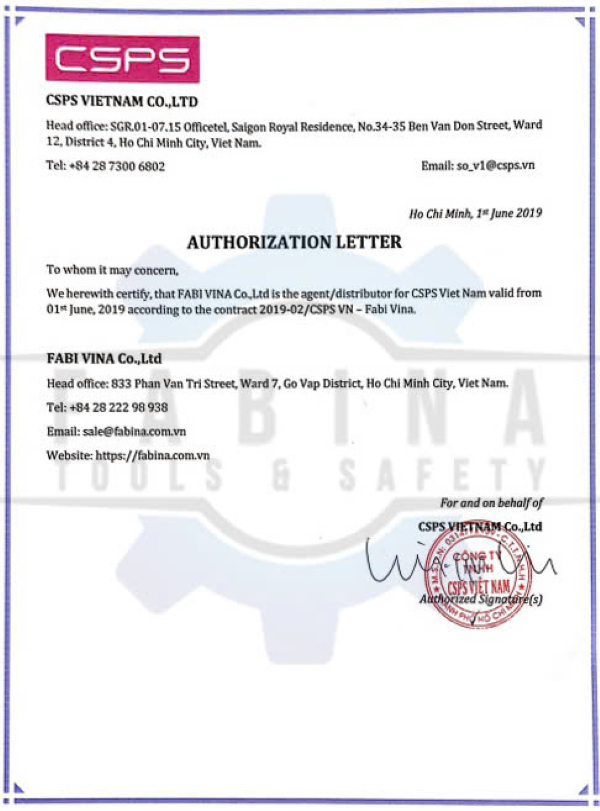

Authorized Distributor Certificate:
